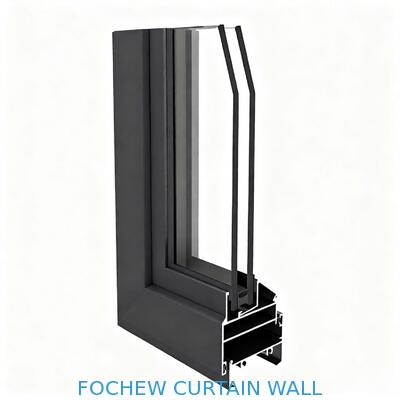

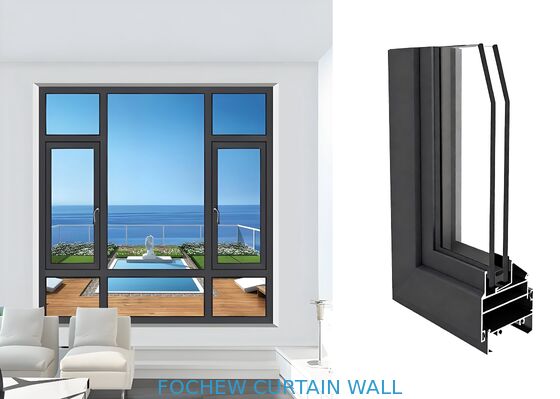

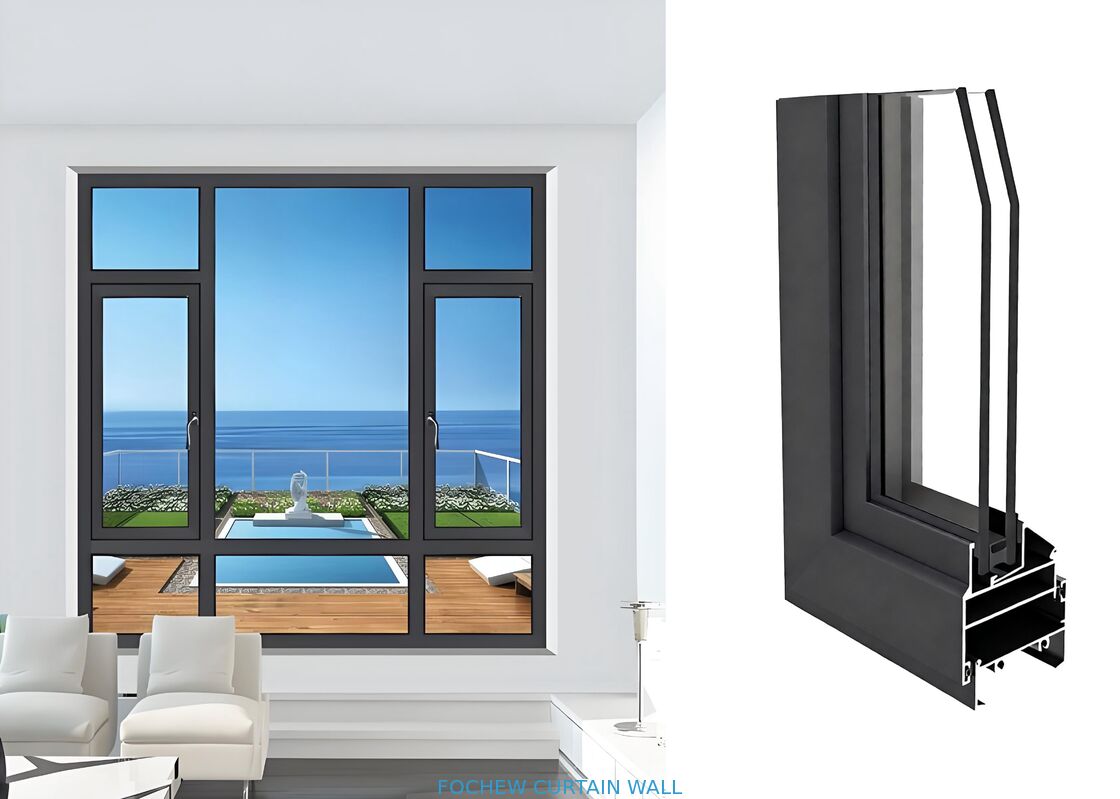

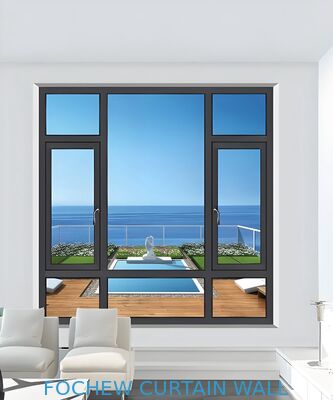

GC50 Series Casement Window Powder Coating Aluminium Casement Windows

GC50 Series Casement Window Powder Coating Aluminium Casement Windows

Brand Name: Fochew
Model Number: GC50
MOQ: 20 m²
Price: $40-50
Payment Terms: T/T
Supply Ability: 200000m²
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Window Type::
Casement Window (Outward Or Inward Opening)
Frame Material::
Aluminum Alloy
Profile Wall Thickness:
1.2-1.6 Mm (Aluminum)
Glass Options:
Single Glass / Double Glazing (5mm + 12A + 5mm) / Low-E Glass
Hardware:
Stainless Steel Hinges, Multi-point Locking System
Sealing System:
EPDM Sealing Strip
Surface Finish:
Powder Coating / Anodized / Wood Grain
Standard Colors::
White, Black, Grey, Customized
Wind Load Resistance:
≥ 2000 Pa
Thermal Insulation:
Uw ~3.5-6.0 W/m²*K (depending On Glass Configuration)
Sound Insulation::
~20-30 DB
Opening Angle::
0–90°
Highlight:

GC50 Series Casement Window

,

Powder Coating Aluminium Casement Windows

,

GC50 Series Aluminium Casement Windows

Product Description
50 Series Casement Window
Product Overview

High cost-efficiency casement window solution designed for apartments and ordinary residential buildings.

Key Features
  • 1.2-1.6 mm aluminum profile construction
  • ≥ 2000 Pa wind load resistance
  • High thermal insulation performance
Technical Specifications
Application Apartments, ordinary residential buildings
Profile Thickness 1.2-1.6 mm Aluminum
Wind Load Resistance ≥ 2000 Pa
Thermal Performance High insulation rating
